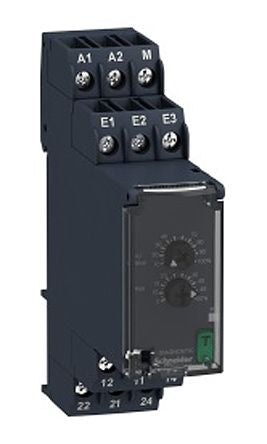

Schneider Electric Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 160 → 288 V ac [RM22TU21]; 124-0185
0₫
Mã kho: 1240185
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 160 → 288 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | 200 → 240 V ac |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | ≤650 (Run-Up) ms |
| Width | 79.5mm |
| Length | 22.9mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Dimensions | 22.9 x 79.5 x 90 mm |
| Minimum Voltage Sensed | 200 V ac |
| Height | 90mm |
| Maximum Voltage Sensed | 240V ac |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Number of Poles | 2 |
| Operating Temperature Range | -20 → +60 °C |
| Series | RM22TR |
| Standards Met | CCC, CE, CISPR 11, CISPR 22, CSA, EAC, EN/IEC 60255-1, EN/IEC 60715, GL, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60529, IEC 60664-1, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 6100, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5 |
