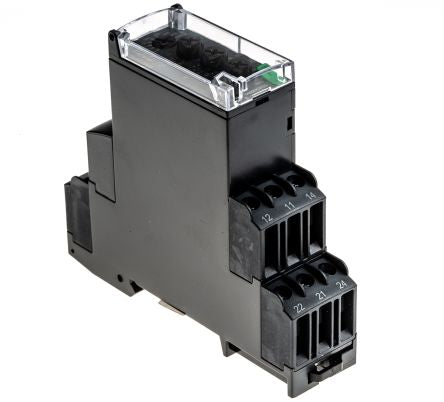

Schneider Electric Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 304 → 576 V ac [RM22TR33]; 124-0184

Name: Schneider Electric Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 304 → 576 V ac [RM22TR33]; 124-0184
Brand: Schneider Electric
SKU: 1240184
Availability: InStock

by Schneider Electric

0₫

(Giá chưa VAT).

Mã kho: 1240184

Mã nhà sản xuất: RM22TR33

Đơn vị tính: Each

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Monitoring Application	Phase, Voltage
Supply Voltage	304 → 576 V ac
Contact Configuration	DPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Electrical Phase	3
Voltage Sensing Range	380 → 480 V ac
Phase Sensitivity	Phase Failure, Phase Sequence
Time Delay	0.1 → 30 s
Frequency Sensing Range	50 → 60 Hz
Current Range	10 mA at 5 V DC → 8 A AC
Minimum Operating Temperature	-20°C
Minimum Voltage Sensed	380 V ac
Number of Poles	2
Dimensions	22.9 x 79.5 x 90 mm
Terminal Type	Screw
Standards Met	CCC, CE, CISPR 11, CISPR 22, CSA, EAC, EN/IEC 60255-1, EN/IEC 60715, GL, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60529, IEC 60664-1, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 6100, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5
Maximum Operating Temperature	+60°C
Mounting Type	DIN Rail
Height	90mm
Length	22.9mm
Series	RM22TR
Width	79.5mm
Operating Temperature Range	-20 → +60 °C
Maximum Voltage Sensed	480V ac
