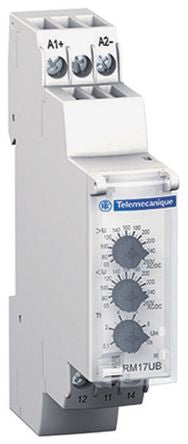

Schneider Electric Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 208 → 480 V ac [RM17UB310]; 146-452

Name: Schneider Electric Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 208 → 480 V ac [RM17UB310]; 146-452
Brand: Schneider Electric
SKU: 146452
Availability: InStock

by Schneider Electric

0₫

(Giá chưa VAT).

Mã kho: 146452

Mã nhà sản xuất: RM17UB310

Đơn vị tính: Each

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Monitoring Application	Voltage
Supply Voltage	208 → 480 V ac
Contact Configuration	SPDT
Voltage Sensitivity	Absence of Neutral, Overvoltage and Undervoltage Between Neutral, Overvoltage and Undervoltage Between Phase
Electrical Phase	3
Voltage Sensing Range	183 → 528 V ac
Time Delay	0.3 → 30 s
Dimensions	72 x 17.5 x 90 mm
Minimum Voltage Sensed	183 V ac
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+50°C
Height	90mm
Maximum Voltage Sensed	528V ac
Operating Temperature Range	-20 → +50 °C
Length	72mm
Width	17.5mm
