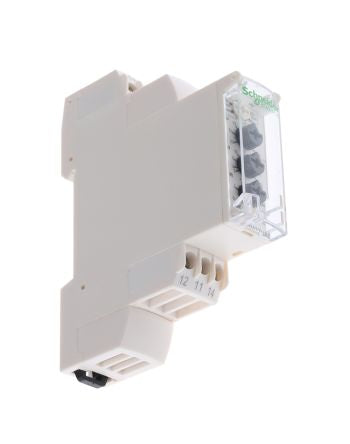

Schneider Electric Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 24 → 48 V ac/dc [RM17UAS16]; 146-159
0₫
Mã kho: 146159
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 → 48 V ac/dc |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Self Powered, Undervoltage |
| Electrical Phase | 1 |
| Voltage Sensing Range | 20 → 80 V ac/dc |
| Time Delay | 0.1 → 10 s |
| Height | 90mm |
| Operating Temperature Range | -20 → +50 °C |
| Width | 17.5mm |
| Length | 72mm |
| Dimensions | 72 x 17.5 x 90 mm |
| Maximum Operating Temperature | +50°C |
| Minimum Voltage Sensed | 20 V ac/dc |
| Minimum Operating Temperature | -20°C |
| Maximum Voltage Sensed | 80V ac/dc |
