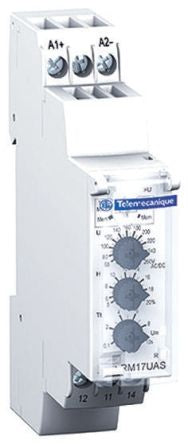

Schneider Electric Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 12 V [RM17UAS14]; 146-165
0₫
Mã kho: 146165
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Voltage |
Supply Voltage | 12 V |
Contact Configuration | SPDT |
Voltage Sensitivity | Overvoltage, Self Powered, Undervoltage |
Electrical Phase | 1 |
Voltage Sensing Range | 9 → 15 V dc |
Time Delay | 0.1 → 10 s |
Operating Temperature Range | -20 → +50 °C |
Dimensions | 72 x 17.5 x 90 mm |
Minimum Voltage Sensed | 9 V dc |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +50°C |
Width | 17.5mm |
Height | 90mm |
Maximum Voltage Sensed | 15V dc |
Length | 72mm |
