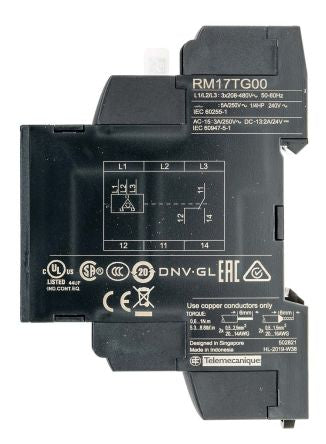

Schneider Electric Phase Monitoring Relay With SPDT Contacts, 3 Phase, 208 → 480 V ac [RM17TG00]; 146-250
0₫
Mã kho: 146250
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase |
| Supply Voltage | 208 → 480 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 3 |
| Phase Sensitivity | Phase Asymmetry, Phase Failure, Phase Sequence |
| Time Delay | <100 ms |
| Maximum Operating Temperature | +50°C |
| Height | 90mm |
| Operating Temperature Range | -20 → +50 °C |
| Width | 17.5mm |
| Length | 72mm |
| Dimensions | 72 x 17.5 x 90 mm |
| Current Range | 10 mA @ 5 V DC |
| Minimum Operating Temperature | -20°C |
