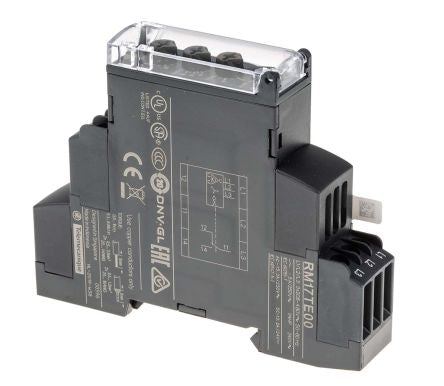

Schneider Electric Phase, Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 208 → 480 V ac [RM17TE00]; 146-496
0₫
Mã kho: 146496
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Phase, Voltage |
Supply Voltage | 208 → 480 V ac |
Contact Configuration | SPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Electrical Phase | 3 |
Voltage Sensing Range | 183 → 528 V ac |
Phase Sensitivity | Phase Asymmetry, Phase Failure, Phase Sequence |
Time Delay | 0.1 → 10 s |
Width | 17.5mm |
Length | 72mm |
Dimensions | 72 x 17.5 x 90 mm |
Minimum Voltage Sensed | 183 V ac |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +50°C |
Height | 90mm |
Operating Temperature Range | -20 → +50 °C |
Maximum Voltage Sensed | 528V ac |
