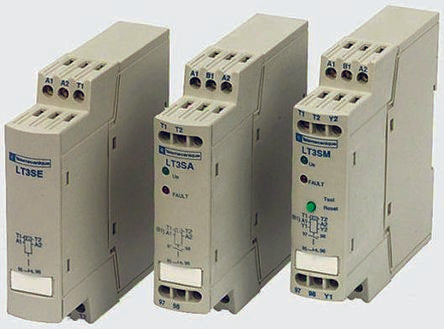

Schneider Electric Temperature Monitoring Relay With DPDT Contacts, 24 → 230 V ac [LT3SM00MW]; 609-8081
0₫
Mã kho: 6098081
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Temperature |
| Supply Voltage | 24 → 230 V ac |
| Contact Configuration | DPDT |
| Temperature Sensitivity | Overtemperature, Undertemperature |
| Operating Temperature Range | -25 → +60 °C |
| Width | 22.5mm |
| Dimensions | 100 x 22.5 x 100 mm |
| Minimum Operating Temperature | -25°C |
| Length | 100mm |
| Height | 100mm |
| Maximum Operating Temperature | +60°C |
