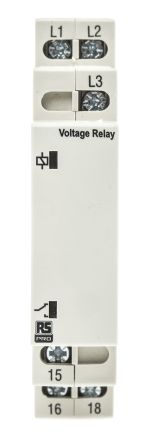

RS PRO Phase, Voltage Multi timer With SPDT Contacts, 3 Phase, 280 → 520 V ac; 102-6135
by RS PRO
0₫
Mã kho: 1026135
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 280 → 520 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | Maximum of 280 V |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 100 ms |
| Frequency Sensing Range | 48 → 63 Hz |
| Minimum Operating Temperature | -20°C |
| Number of Poles | 1 |
| Dimensions | 17.5 x 66.5 x 89 mm |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Voltage Sensed | 280V |
| Height | 89mm |
| Special Features | Detects Incorrect Phase Sequence & Phase Loss, Fixed Time Delay, Fixed Undervoltage Trip Level, Measures Phase to Phase Voltages, Microprocessor Based Relay, Monitors Own Supply & Detects an Undervoltage Condition on One or more Phases, True RMS Monitoring, 2 LEDs for the Indication of Operational States |
| Maximum Operating Temperature | +60°C |
| Mounting Type | DIN Rail |
| Standards Met | CE, EMC EN 61000-6, IEC |
| Series | L-Series |
| Length | 66.5mm |
| Width | 17.5mm |
