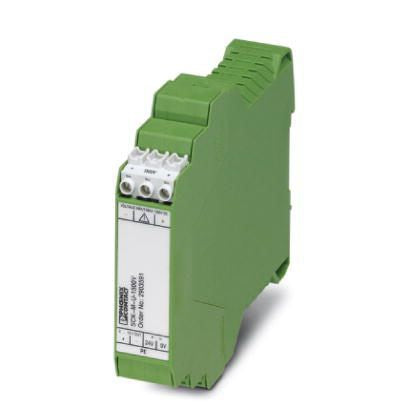

Phoenix Contact Voltage Monitoring Relay, 24 V dc [2903591]; 181-2035
0₫
Mã kho: 1812035
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 V dc |
| Voltage Sensing Range | 2 → 10 V dc |
| Minimum Voltage Sensed | 2 V dc |
| Width | 102mm |
| Current Range | 65 mA |
| Minimum Operating Temperature | -20°C |
| Length | 22.5mm |
| Height | 128.5mm |
| Maximum Voltage Sensed | 10V dc |
| Mounting Type | Horizontal Mount, Vertical Mount |
| Operating Temperature Range | -20 → +70 °C |
| Terminal Type | Screw |
| Dimensions | 22.5 x 102 x 128.5 mm |
| Maximum Operating Temperature | +70°C |
