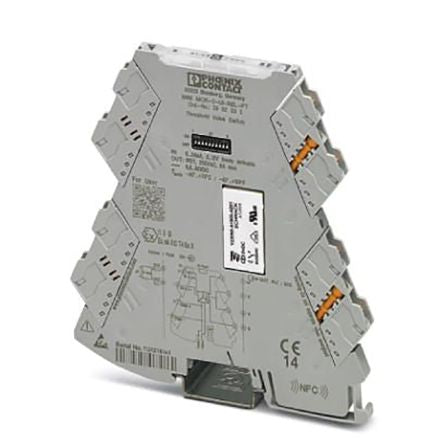

Phoenix Contact Current, Voltage Limit Switch With SPDT Contacts, 9.6 → 30 V dc [2902035]; 890-3875
0₫
Mã kho: 8903875
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current, Voltage |
| Supply Voltage | 9.6 → 30 V dc |
| Contact Configuration | SPDT |
| Voltage Sensing Range | 0 → 12 V |
| Current Sensitivity | Overcurrent |
| Minimum Current Sensed | 0mA |
| Maximum Current Sensed | 24mA |
| Number of Poles | 1 |
| Minimum Voltage Sensed | 0 V dc |
| Current Range | 0 → 24 mA |
| Minimum Operating Temperature | -40°C |
| Dimensions | 120.5 x 6.2 x 110.5 mm |
| Height | 110.5mm |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -40 → +70 °C |
| Width | 6.2mm |
| Maximum Voltage Sensed | 12V dc |
| Series | MINI MCR-2-UI-REL-PT |
| Standards Met | ATEX, CE, EN 60715, EN 60947-5-6, EX-Zone 2, IEC 610101-1, UL, UL 508, USA |
| Maximum Operating Temperature | +70°C |
| Special Features | Can be Supplied Configured or Unconfigured, Configurable, Freely Adjustable 3-way Threshold Value Switch with Plug-In Connection Technology, Relay Output with PDT |
| Length | 120.5mm |
