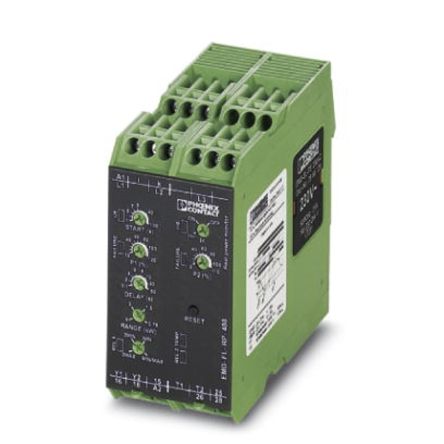

Phoenix Contact Current, Temperature, Voltage Monitoring Relay With DPDT Contacts, 1, 3 Phase, 110 → 500 V ac [2900177]; 715-7986
0₫
Mã kho: 7157986
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Current, Temperature, Voltage |
Supply Voltage | 110 → 500 V ac |
Contact Configuration | DPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Electrical Phase | 1, 3 |
Voltage Sensing Range | 0 → 480 V ac |
Current Sensitivity | Overcurrent, Undercurrent |
Minimum Current Sensed | 0.15A |
Maximum Current Sensed | 12A |
Time Delay | 0.1 → 50 s |
Temperature Sensitivity | Overtemperature, Undertemperature |
Length | 113mm |
Series | EMD-FL-RP-480 |
Dimensions | 113 x 45 x 90 mm |
Width | 45mm |
Operating Temperature Range | -25 → +55 °C |
Minimum Voltage Sensed | 0 V ac |
Current Range | 0.15 → 6 A, 0.3 → 12 A |
Maximum Operating Temperature | +55°C |
Minimum Operating Temperature | -25°C |
Maximum Voltage Sensed | 480V ac |
Height | 90mm |
