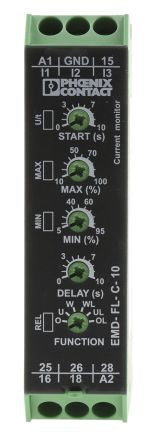

Phoenix Contact Current Monitoring Relay With DPDT Contacts, 1 Phase, 24 → 240 V ac/dc [2866022]; 801-6218
0₫
Mã kho: 8016218
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Current |
Supply Voltage | 24 → 240 V ac/dc |
Contact Configuration | DPDT |
Electrical Phase | 1 |
Current Sensitivity | Overcurrent, Undercurrent |
Minimum Current Sensed | 0A |
Maximum Current Sensed | 0.1 A, 1 A, 10 A |
Time Delay | 0.1 → 10 s |
Height | 90mm |
Operating Temperature Range | -25 → +55 °C |
Width | 22.5mm |
Length | 113mm |
Series | EMD-FL-C-10 |
Dimensions | 113 x 22.5 x 90 mm |
Current Range | 0 → 10 A |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +55°C |
