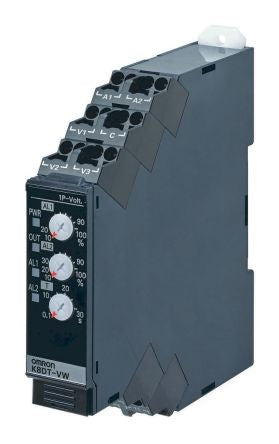

Omron Voltage Monitoring Relay With SPST Contacts, 1 Phase, 24 V ac/dc [K8DT-VW2TD]; 111-3118
by Omron
0₫
Mã kho: 1113118
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Voltage |
Supply Voltage | 24 V ac/dc |
Contact Configuration | SPST |
Voltage Sensitivity | Overvoltage, Undervoltage |
Electrical Phase | 1 |
Voltage Sensing Range | 1 → 10 V, 3 → 30 V, 15 → 150 V |
Time Delay | 250 ms |
Maximum Operating Temperature | +60°C |
Height | 90mm |
Maximum Voltage Sensed | 10 V, 30 V, 150 V |
Length | 90mm |
Width | 17.5mm |
Operating Temperature Range | -20 → +60 °C |
Terminal Type | Screw |
Mounting Type | DIN Rail |
Number of Poles | 1 |
Dimensions | 90 x 17.5 x 90 mm |
Minimum Voltage Sensed | 1 V, 3 V, 15 V |
Minimum Operating Temperature | -20°C |
Series | K8DT-VW |
Standards Met | CCC, CE Certified, EN 60947-5-1, UL, UL 60947-5-1 |
