![Omron K8DT-VW2CD 1113116](http://nguyenxuong.com/cdn/shop/products/R1113116-01_279x444.jpg?v=1594338343)

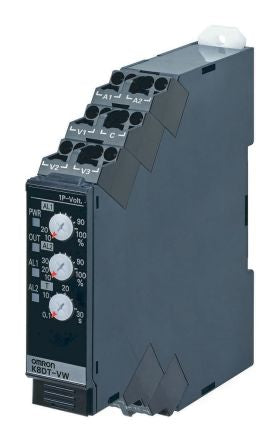

Omron Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 24 V ac/dc [K8DT-VW2CD]; 111-3116
by Omron
0₫
Mã kho: 1113116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Voltage |
Supply Voltage | 24 V ac/dc |
Contact Configuration | SPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Electrical Phase | 1 |
Voltage Sensing Range | 1 → 10 V, 3 → 30 V, 15 → 150 V |
Time Delay | 250 ms |
Operating Temperature Range | -20 → +60 °C |
Maximum Voltage Sensed | 10 V, 30 V, 150 V |
Height | 90mm |
Maximum Operating Temperature | +60°C |
Width | 17.5mm |
Mounting Type | DIN Rail |
Minimum Operating Temperature | -20°C |
Minimum Voltage Sensed | 1 V, 3 V, 15 V |
Length | 90mm |
Series | K8DT-VW |
Number of Poles | 1 |
Dimensions | 90 x 17.5 x 90 mm |
Standards Met | CCC, CE Certified, EN 60947-5-1, UL, UL 60947-5-1 |
Terminal Type | Screw |
