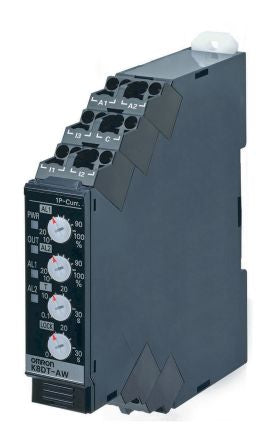

Omron Current Monitoring Relay With SPDT Contacts, 1 Phase, 24 V ac/dc [K8DT-AW2CD]; 111-3104
by Omron
0₫
Mã kho: 1113104
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 V ac/dc |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 0.1 A, 0.5 A |
| Maximum Current Sensed | 1 A, 5 A |
| Time Delay | 250 ms |
| Maximum Operating Temperature | +60°C |
| Series | K8DT-AW |
| Length | 90mm |
| Width | 17.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Height | 90mm |
| Mounting Type | DIN Rail |
| Current Range | 0.1 → 1 A, 0.5 → 5 A |
| Minimum Operating Temperature | -20°C |
| Number of Poles | 1 |
| Dimensions | 90 x 17.5 x 90 mm |
| Standards Met | CCC, CE Certified, EN 60947-5-1, UL, UL 60947-5-1 |
