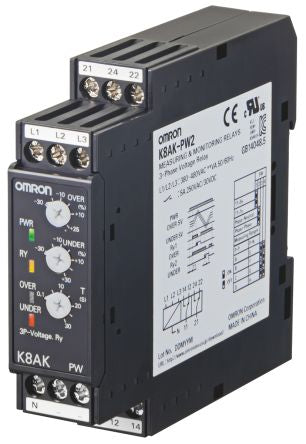

Omron Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 220 → 480 V ac [K8AKPW2380480VAC]; 819-3264
by Omron
0₫
Mã kho: 8193264
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Voltage |
Supply Voltage | 220 → 480 V ac |
Contact Configuration | SPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Electrical Phase | 3 |
Time Delay | 0.1 → 30 s |
Width | 100mm |
Maximum Operating Temperature | +60°C |
Operating Temperature Range | -20 → +60 °C |
Height | 95mm |
Minimum Operating Temperature | -20°C |
Length | 22.5mm |
Dimensions | 22.5 x 100 x 95 mm |
Series | K8AK-PW |
