![Omron K8AKPM1200240VAC 8193258](http://nguyenxuong.com/cdn/shop/products/F8193258-01_358x444.jpg?v=1594030344)

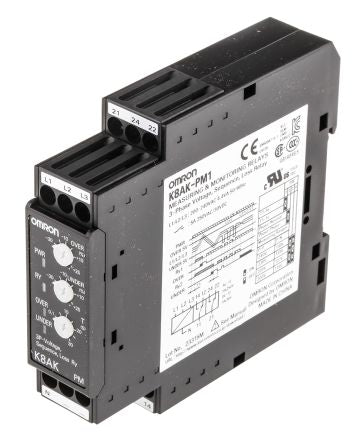

Omron Phase Monitoring Relay With SPDT Contacts, 3 Phase, 115 → 240 V ac [K8AKPM1200240VAC]; 819-3258
by Omron
0₫
Mã kho: 8193258
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Phase |
Supply Voltage | 115 → 240 V ac |
Contact Configuration | SPDT |
Electrical Phase | 3 |
Phase Sensitivity | Overvoltage, Phase Loss, Phase Sequence, Undervoltage |
Time Delay | 0.1 → 30 s |
Height | 95mm |
Width | 100mm |
Length | 22.5mm |
Maximum Operating Temperature | +60°C |
Operating Temperature Range | -20 → +60 °C |
Dimensions | 22.5 x 100 x 95 mm |
Minimum Operating Temperature | -20°C |
Series | K8AK-PM |
