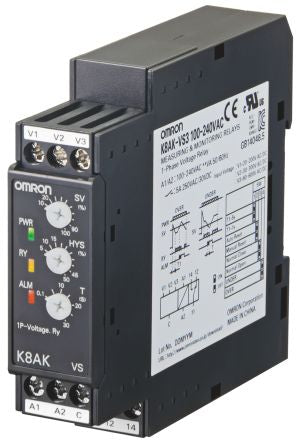

Omron Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 100 → 240 V ac [K8AK-VS2 100-240VAC]; 819-3282
by Omron
0₫
Mã kho: 8193282
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Voltage |
Supply Voltage | 100 → 240 V ac |
Contact Configuration | SPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Electrical Phase | 1 |
Voltage Sensing Range | 1 → 10 V ac/dc, 3 → 30 V ac/dc, 15 → 150 V ac/dc |
Time Delay | 0.1 → 30 s |
Height | 95mm |
Maximum Voltage Sensed | 10 V ac/dc, 30 V ac/dc, 150 V ac/dc |
Operating Temperature Range | -20 → +60 °C |
Width | 100mm |
Length | 22.5mm |
Series | K8AK-VS |
Dimensions | 22.5 x 100 x 95 mm |
Minimum Voltage Sensed | 1 V ac/dc, 3 V ac/dc, 15 V ac/dc |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
