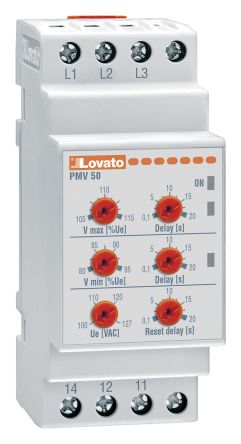

Lovato Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 380 → 575 V ac [PMV50A575]; 916-0114
by Lovato
0₫
Mã kho: 9160114
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Voltage |
Supply Voltage | 380 → 575 V ac |
Contact Configuration | SPDT |
Voltage Sensitivity | Self Powered |
Electrical Phase | 3 |
Voltage Sensing Range | Maximum of 400 V ac |
Time Delay | 0.1 → 20 s |
Operating Temperature Range | -20 → +60 °C |
Maximum Operating Temperature | +60°C |
Height | 104.7mm |
Maximum Voltage Sensed | 400V ac |
Mounting Type | DIN Rail |
Terminal Type | Screw |
Number of Poles | 1 |
Width | 64.9mm |
Minimum Operating Temperature | -20°C |
Dimensions | 35.8 x 64.9 x 104.7 mm |
Standards Met | CE, CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
Series | PMV50 |
Length | 35.8mm |
