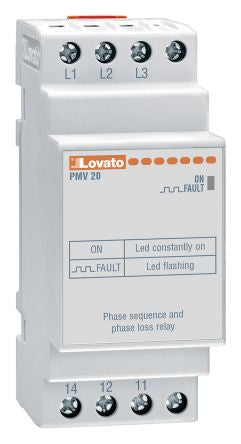

Lovato Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 380 → 600 V ac [PMV20A600]; 916-0094
by Lovato
0₫
Mã kho: 9160094
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 380 → 600 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Self Powered |
| Electrical Phase | 3 |
| Voltage Sensing Range | Maximum of 400 V ac |
| Time Delay | 60 ms |
| Minimum Operating Temperature | -20°C |
| Standards Met | CE, CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
| Series | PMV20 |
| Length | 35.8mm |
| Width | 64.9mm |
| Number of Poles | 1 |
| Dimensions | 35.8 x 64.9 x 104.7 mm |
| Height | 104.7mm |
| Maximum Voltage Sensed | 400V ac |
| Mounting Type | DIN Rail |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Maximum Operating Temperature | +60°C |
