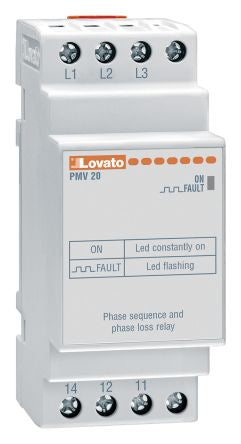

![Lovato PMV20A240 9160081](http://nguyenxuong.com/cdn/shop/products/R9160081-01_241x444.jpg?v=1593774219)
Lovato Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 100 → 240 V ac [PMV20A240]; 916-0081
by Lovato
0₫
Mã kho: 9160081
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Voltage |
Supply Voltage | 100 → 240 V ac |
Contact Configuration | SPDT |
Voltage Sensitivity | Self Powered |
Electrical Phase | 3 |
Voltage Sensing Range | Maximum of 400 V ac |
Time Delay | 60 ms |
Length | 35.8mm |
Maximum Operating Temperature | +60°C |
Width | 64.9mm |
Operating Temperature Range | -20 → +60 °C |
Terminal Type | Screw |
Mounting Type | DIN Rail |
Maximum Voltage Sensed | 400V ac |
Height | 104.7mm |
Minimum Operating Temperature | -20°C |
Number of Poles | 1 |
Dimensions | 35.8 x 64.9 x 104.7 mm |
Standards Met | CE, CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
Series | PMV20 |
