![Lovato PMA50A480 9160192](http://nguyenxuong.com/cdn/shop/products/R9160192-01_318x444.jpg?v=1594253560)

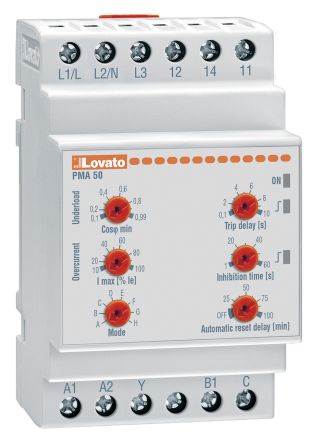

Lovato Current Monitoring Relay With SPDT Contacts, 1, 3 Phase, 440 → 480 V ac [PMA50A480]; 916-0192
by Lovato
0₫
Mã kho: 9160192
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Current |
Supply Voltage | 440 → 480 V ac |
Contact Configuration | SPDT |
Electrical Phase | 1, 3 |
Current Sensitivity | Overcurrent, Undercurrent |
Minimum Current Sensed | 0.1A |
Maximum Current Sensed | 16A |
Time Delay | 0.1 → 10 s |
Mounting Type | DIN Rail |
Height | 104.7mm |
Series | PMA50 |
Length | 53.5mm |
Maximum Operating Temperature | +60°C |
Width | 64.9mm |
Operating Temperature Range | -20 → +60 °C |
Terminal Type | Screw |
Standards Met | CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
Number of Poles | 1 |
Dimensions | 53.5 x 64.9 x 104.7 mm |
Minimum Operating Temperature | -20°C |
Current Range | 0.1 → 16 A |
