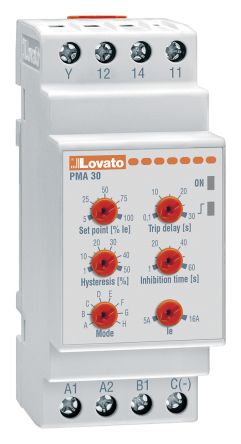

Lovato Current Monitoring Relay With SPDT Contacts, 1 Phase, 24 → 240 V ac/dc [PMA30240]; 916-0182
by Lovato
0₫
Mã kho: 9160182
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Current |
Supply Voltage | 24 → 240 V ac/dc |
Contact Configuration | SPDT |
Electrical Phase | 1 |
Current Sensitivity | Overcurrent |
Minimum Current Sensed | 0.25A |
Maximum Current Sensed | 16A |
Time Delay | 0.1 → 30 s |
Standards Met | CSA C22.2 No. 14, CULus, File E93601, IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL Listed |
Dimensions | 35.8 x 64.9 x 104.7 mm |
Number of Poles | 1 |
Current Range | 0.25 → 16 A |
Minimum Operating Temperature | -20°C |
Series | PMA30 |
Length | 35.8mm |
Maximum Operating Temperature | +60°C |
Height | 104.7mm |
Mounting Type | DIN Rail |
Width | 64.9mm |
Operating Temperature Range | -20 → +60 °C |
Terminal Type | Screw |
