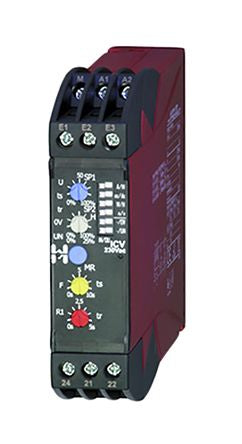

Hiquel Voltage Monitoring Relay With DPDT Contacts, 1 Phase, 400 V ac [ICV 400Vac]; 914-4657
by Hiquel
0₫
Mã kho: 9144657
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 400 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 1 |
| Voltage Sensing Range | 0 → 10 (E1-M) V, 0 → 45 (E2-M) V, 0 → 450 (E3-M) V |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Maximum Voltage Sensed | 10 (E1-M) V, 45 (E2-M) V, 450 (E3-M) V |
| Height | 110mm |
| Maximum Operating Temperature | +60°C |
| Width | 93.5mm |
| Minimum Operating Temperature | -20°C |
| Minimum Voltage Sensed | 0 V |
| Number of Poles | 2 |
| Dimensions | 22.5 x 93.5 x 110 mm |
| Standards Met | CE, EN 60947-5-1, VDE 0435 |
| Length | 22.5mm |
