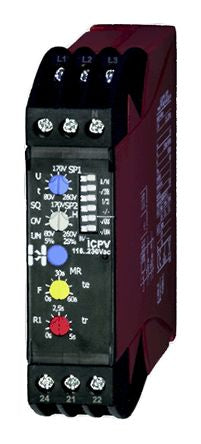

Hiquel Phase Monitoring Relay With DPDT Contacts, 3 Phase, 115 → 230 V ac [ICP-V (4-Wire)]; 914-4663
by Hiquel
0₫
Mã kho: 9144663
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase |
| Supply Voltage | 115 → 230 V ac |
| Contact Configuration | DPDT |
| Electrical Phase | 3 |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Standards Met | CE, EN 60947-5-1, VDE 0435 |
| Dimensions | 22.5 x 93.5 x 110 mm |
| Minimum Operating Temperature | -20°C |
| Number of Poles | 2 |
| Maximum Operating Temperature | +60°C |
| Height | 110mm |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Width | 93.5mm |
| Length | 22.5mm |
