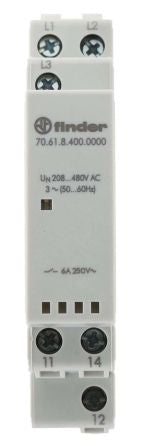

Finder Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 208 → 480 V [70.61.8.400.0000]; 789-2755
by Finder
0₫
Mã kho: 7892755
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 208 → 480 V |
| Contact Configuration | SPDT |
| Electrical Phase | 3 |
| Phase Sensitivity | Phase Loss, Phase Sequence |
| Time Delay | 0.5 s |
| Frequency Sensing Range | 50 → 60 Hz |
| Dimensions | 60.8 x 17.5 x 87 mm |
| Length | 87mm |
| Operating Temperature Range | -20 → +60 °C |
| Current Range | 0.25 |
| Series | 72 Series |
| Width | 17.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Height | 60.8mm |
