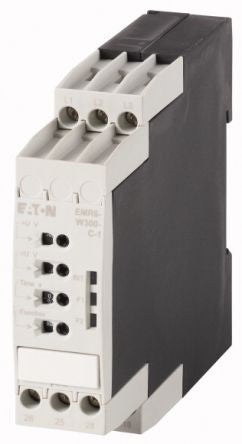

Eaton Phase, Voltage Monitoring Relay, 160 → 300 V ac [EMR6-W300-C-1]; 179-3543
by Eaton
0₫
Mã kho: 1793543
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Phase, Voltage |
Supply Voltage | 160 → 300 V ac |
Voltage Sensing Range | 160 → 300 V ac |
Time Delay | 0.1 → 30 s |
Frequency Sensing Range | 50 → 60 Hz |
Terminal Type | Screw |
Mounting Type | DIN Rail |
Maximum Voltage Sensed | 300V ac |
Height | 78mm |
Operating Temperature Range | -25 → +60 °C |
Minimum Voltage Sensed | 160 V ac |
Width | 109.5mm |
Length | 22.5mm |
Minimum Operating Temperature | -25°C |
Minimum Frequency Sensed | 50Hz |
Dimensions | 22.5 x 109.5 x 78 mm |
Maximum Operating Temperature | +60°C |
Maximum Frequency Sensed | 60Hz |
Series | EMR6 |
