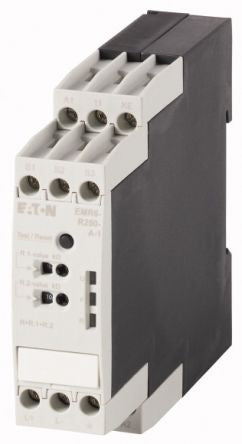

Eaton Insulation Monitoring Relay, 24 → 240 V ac/dc [EMR6-R250-A-1]; 179-3538
by Eaton
0₫
Mã kho: 1793538
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Insulation |
| Supply Voltage | 24 → 240 V ac/dc |
| Voltage Sensing Range | 0 → 250 V ac, 0 → 300 V dc |
| Minimum Operating Temperature | -25°C |
| Length | 22.5mm |
| Width | 109.5mm |
| Minimum Voltage Sensed | 0 V ac/dc |
| Operating Temperature Range | -25 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Maximum Voltage Sensed | 250 V ac, 300 V dc |
| Height | 78mm |
| Maximum Operating Temperature | +60°C |
| Series | EMR6 |
| Dimensions | 22.5 x 109.5 x 78 mm |
