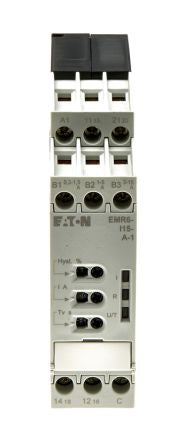

Eaton Current Monitoring Relay, 1 Phase, 24 → 240 V ac/dc [EMR6-I15-A-1]; 179-3519
by Eaton
0₫
Mã kho: 1793519
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Current |
Supply Voltage | 24 → 240 V ac/dc |
Electrical Phase | 1 |
Minimum Current Sensed | 0.3 A, 1 A, 3 A |
Maximum Current Sensed | 1.5 A, 5 A, 15 A |
Time Delay | 0.1 → 30 s |
Current Range | 0.3 → 1.5 A, 1 → 5 A, 3 → 15 A |
Terminal Type | Screw |
Operating Temperature Range | -25 → +60 °C |
Width | 109.5mm |
Length | 22.5mm |
Minimum Operating Temperature | -25°C |
Height | 78mm |
Maximum Operating Temperature | +60°C |
Dimensions | 22.5 x 109.5 x 78 mm |
Mounting Type | DIN Rail |
Series | EMR6 |
