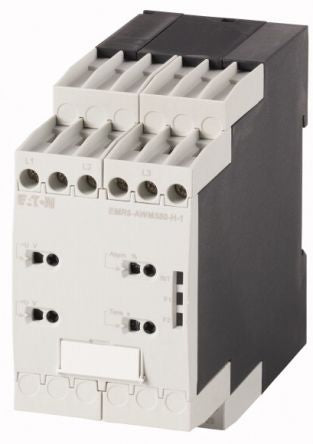

Eaton Phase, Voltage Monitoring Relay, 350 → 580 V ac [EMR6-AWM580-H-1]; 179-3531
by Eaton
0₫
Mã kho: 1793531
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 350 → 580 V ac |
| Voltage Sensing Range | 350 → 580 V ac |
| Time Delay | 0.1 → 30 s |
| Frequency Sensing Range | 50 → 60 Hz |
| Series | EMR6 |
| Maximum Operating Temperature | +60°C |
| Dimensions | 45 x 109.5 x 78 mm |
| Maximum Frequency Sensed | 60Hz |
| Height | 78mm |
| Maximum Voltage Sensed | 580V ac |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -25 → +60 °C |
| Minimum Voltage Sensed | 350 V ac |
| Width | 109.5mm |
| Length | 45mm |
| Minimum Operating Temperature | -25°C |
| Minimum Frequency Sensed | 50Hz |
