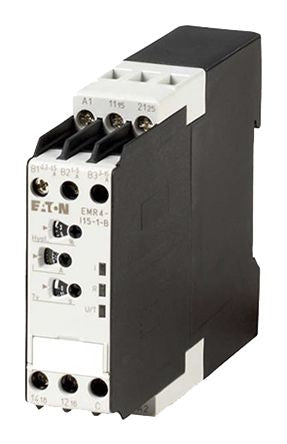

Eaton Current Monitoring Relay With DPDT Contacts, 1 Phase, 220 → 240 V ac [106944]; 102-6140
by Eaton
0₫
Mã kho: 1026140
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 220 → 240 V ac |
| Contact Configuration | DPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 0.3 (B1) A, 1 (B2) A, 3 (B3) A |
| Maximum Current Sensed | 1.5 (B1) A, 5 (B2) A, 15 (B3) A |
| Time Delay | 0.1 → 30 s |
| Height | 100mm |
| Dimensions | 22.5 x 78 x 100 mm |
| Standards Met | CE Certified, CSA-22.2, EN 55022, IEC 255-6, IEC 60947-5-1, IEC 664, IEC 947-1, IEC/EN 60068-2-30, IEC/EN 60255-21-1, IEC/EN 60255-21-2, IEC/EN 60255-5, IEC/EN 60255-6, IEC/EN 60947-1, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-6, IEC/EN 61000-4-9, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL, UL 508, UL Listed, VDE 0110, 2004/108/EC, 2006/95/EC, 3211-03 |
| Series | EMR4 |
| Length | 22.5mm |
| Width | 78mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Maximum Operating Temperature | +60°C |
| Number of Poles | 1 |
| Current Range | 0.3 → 1.5 (B1) A, 1 → 5 (B2) A, 3 → 15 (B3) A |
| Minimum Operating Temperature | -20°C |
