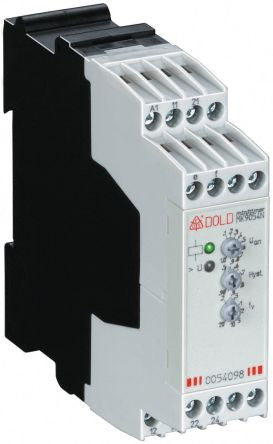

Dold Current Monitoring Relay With DPDT Contacts, 230 V ac [MK9053N.12/012 AC0.5-5A]; 465-0665
by Dold
0₫
Mã kho: 4650665
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 230 V ac |
| Contact Configuration | DPDT |
| Current Sensitivity | Undercurrent |
| Minimum Current Sensed | 0.5A |
| Maximum Current Sensed | 5A |
| Time Delay | 0 → 20 s |
| Operating Temperature Range | -20 → +50 °C |
| Current Range | 0.5 → 5 A |
| Length | 97mm |
| Dimensions | 97 x 22.5 x 90 mm |
| Width | 22.5mm |
| Height | 90mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
