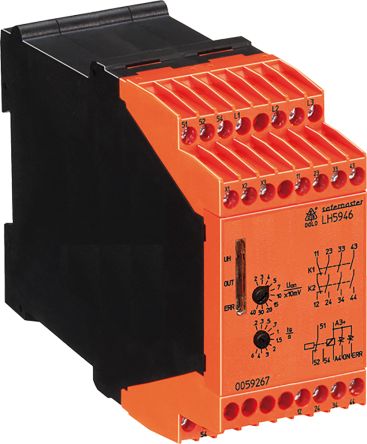

Dold Monitoring Relay [LH5946.48/61 20-400mV UH=DC24V 0,2-6s]; 181-2782
by Dold
0₫
Mã kho: 1812782
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Standstill |
Supply Voltage | 24 V dc |
Contact Configuration | 3NO/NC |
Voltage Sensing Range | 20 → 400 mV |
Time Delay | 0.2 → 6 s |
Minimum Voltage Sensed | 20 mV |
Width | 121mm |
Length | 45mm |
Minimum Operating Temperature | -25°C |
Series | LH5946 |
Maximum Operating Temperature | +60°C |
Dimensions | 45 x 121 x 90 mm |
Operating Temperature Range | -25 → +60 °C |
Terminal Type | Screw |
Mounting Type | DIN Rail |
Height | 90mm |
