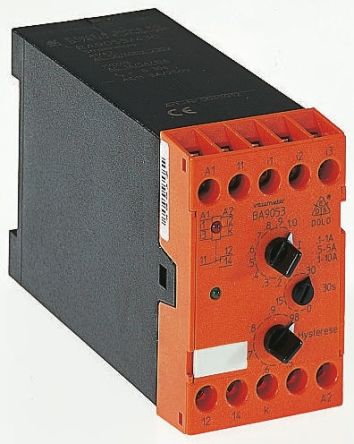

![Dold BA9053/410 AC1A/5A/10A AC230V 0-20S 2409320](http://nguyenxuong.com/cdn/shop/products/R2409320-01_354x444.jpg?v=1593778707)
Dold Current Monitoring Relay With SPDT Contacts, 230 V ac [BA9053/410 AC1A/5A/10A AC230V 0-20S]; 240-9320
by Dold
0₫
Mã kho: 2409320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Current |
Supply Voltage | 230 V ac |
Contact Configuration | SPDT |
Minimum Current Sensed | 0.1A |
Maximum Current Sensed | 10A |
Time Delay | 0.5 → 5 s |
Operating Temperature Range | -20 → +50 °C |
Width | 45mm |
Length | 132mm |
Dimensions | 132 x 45 x 73 mm |
Maximum Operating Temperature | +50°C |
Height | 73mm |
Current Range | 0.1 → 1 A, 0.5 → 5 A, 1 → 10 A |
Minimum Operating Temperature | -20°C |
