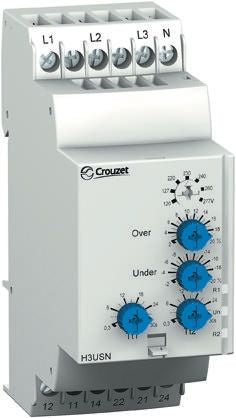

Crouzet Voltage Monitoring Relay With 2NO/2NC Contacts, 3 Phase, 120 → 277 V ac [84873221]; 262-205
by Crouzet
0₫
Mã kho: 262205
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 120 → 277 V ac |
| Contact Configuration | 2NO/2NC |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | 96 → 332 V ac |
| Time Delay | 0.3 → 30 s |
| Maximum Operating Temperature | +50°C |
| Operating Temperature Range | -20 → +50 °C |
| Width | 35mm |
| Length | 69mm |
| Dimensions | 69 x 35 x 92.6 mm |
| Minimum Voltage Sensed | 96 V ac |
| Minimum Operating Temperature | -20°C |
| Height | 92.6mm |
| Maximum Voltage Sensed | 332V ac |
