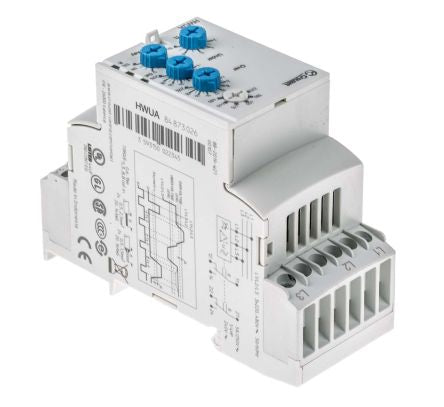

Crouzet Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 220 → 480 V ac [84873026]; 262-003
by Crouzet
0₫
Mã kho: 262003
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 220 → 480 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | 194 → 528 V |
| Phase Sensitivity | Phase Asymmetry, Phase Failure, Phase Sequence |
| Time Delay | 0.1 → 10 s |
| Maximum Voltage Sensed | 528V |
| Height | 92.6mm |
| Maximum Operating Temperature | +50°C |
| Dimensions | 69 x 35 x 92.6 mm |
| Length | 69mm |
| Minimum Voltage Sensed | 194 V |
| Minimum Operating Temperature | -20°C |
| Width | 35mm |
| Operating Temperature Range | -20 → +50 °C |
