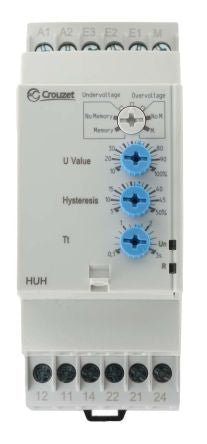

Crouzet Voltage Monitoring Relay With DPDT Contacts, 24 → 240 V ac/dc [84872130]; 614-9410
by Crouzet
0₫
Mã kho: 6149410
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Voltage Sensing Range | 15 → 600 V |
| Time Delay | 0.1 → 3 s |
| Height | 92.6mm |
| Maximum Voltage Sensed | 600V |
| Operating Temperature Range | -20 → +50 °C |
| Width | 35mm |
| Length | 69mm |
| Dimensions | 69 x 35 x 92.6 mm |
| Minimum Operating Temperature | -20°C |
| Minimum Voltage Sensed | 15 V |
| Maximum Operating Temperature | +50°C |
