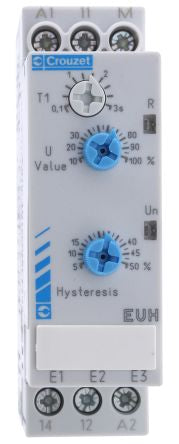

Crouzet Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 24 V dc [84872030]; 463-3474
by Crouzet
0₫
Mã kho: 4633474
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 V dc |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Voltage Sensing Range | 15 → 600 V |
| Time Delay | 0.1 → 3 s |
| Maximum Operating Temperature | +60°C |
| Height | 78mm |
| Maximum Voltage Sensed | 600V |
| Operating Temperature Range | -20 → +60 °C |
| Width | 22.5mm |
| Length | 103.5mm |
| Dimensions | 103.5 x 22.5 x 78 mm |
| Minimum Voltage Sensed | 15 V |
| Minimum Operating Temperature | -20°C |
