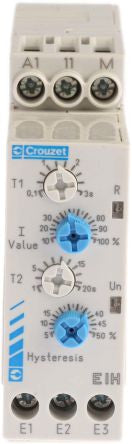

Crouzet Current Monitoring Relay With SPDT Contacts, 1 Phase, 24 V dc [84871030]; 463-3402
by Crouzet
0₫
Mã kho: 4633402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 V dc |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 0.1A |
| Maximum Current Sensed | 10A |
| Time Delay | 0.1 → 3 s |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -20 → +60 °C |
| Width | 22.5mm |
| Length | 103.5mm |
| Dimensions | 103.5 x 22.5 x 99.3 mm |
| Height | 99.3mm |
| Minimum Operating Temperature | -20°C |
| Current Range | 0.1 → 10 A |
