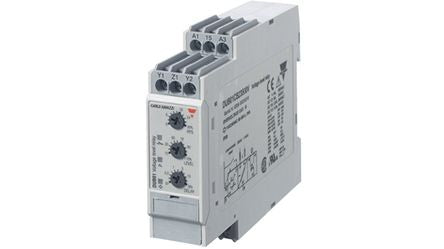

Carlo Gavazzi Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 24 → 48 V ac/dc [DUB01CD48500V]; 857-7905
0₫
Mã kho: 8577905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 → 48 V ac/dc |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 1 |
| Voltage Sensing Range | 2 → 500 V ac/dc |
| Time Delay | 1 s, 6 s |
| Maximum Operating Temperature | +60°C |
| Minimum Voltage Sensed | 2 V ac/dc |
| Height | 83.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Width | 99.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Voltage Sensed | 500V ac/dc |
| Dimensions | 22.5 x 99.5 x 83.5 mm |
| Length | 22.5mm |
