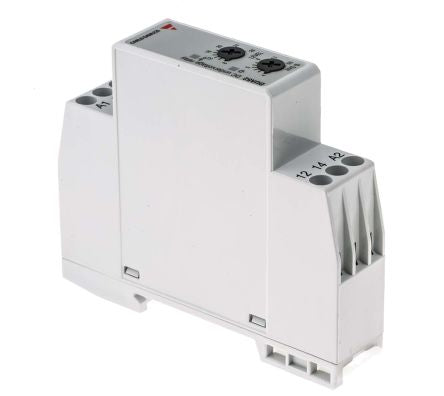

Carlo Gavazzi Voltage Monitoring Relay With SPDT Contacts, 12 → 24 V dc [DUA52C724]; 859-3027
0₫
Mã kho: 8593027
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 12 → 24 V dc |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Undervoltage |
| Voltage Sensing Range | 8 → 28 V dc |
| Time Delay | <200 ms |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Operating Temperature | +60°C |
| Maximum Voltage Sensed | 28V dc |
| Height | 81mm |
| Minimum Voltage Sensed | 8 V dc |
| Minimum Operating Temperature | -20°C |
| Length | 17.5mm |
| Dimensions | 17.5 x 67.2 x 81 mm |
| Width | 67.2mm |
