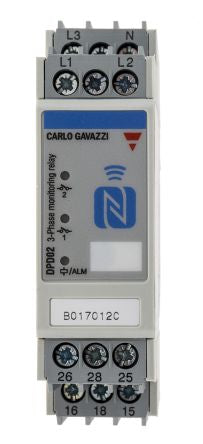

Carlo Gavazzi Frequency, Phase, Voltage Monitoring Relay SPDT, NFC, 3 Phase, 166 → 576 V [DPD02DM44]; 165-1484
0₫
Mã kho: 1651484
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Frequency, Phase, Voltage |
| Supply Voltage | 166 → 576 V |
| Contact Configuration | SPDT |
| Electrical Phase | 3 |
| Voltage Sensing Range | 102 → 318 V ac, 177 → 552 V ac |
| Phase Sensitivity | Phase Loss, Phase Presence, Phase Sequence |
| Time Delay | 60 s |
| Frequency Sensing Range | 45 → 440 Hz |
| Height | 84mm |
| Maximum Voltage Sensed | 318 V ac, 552 V ac |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Number of Poles | 1 |
| Minimum Voltage Sensed | 102 V ac, 177 V ac |
| Width | 22.5mm |
| Length | 99.5mm |
| Minimum Operating Temperature | -20°C |
| Minimum Frequency Sensed | 45Hz |
| Series | DPD |
| Standards Met | IEC 60068-2-64, IEC 60255-21-1, IEC 60255-21-2 |
| Frequency Sensitivity | Overfrequency, Underfrequency |
| Maximum Operating Temperature | +60°C |
| Dimensions | 99.5 x 22.5 x 84 mm |
| Maximum Frequency Sensed | 440Hz |
