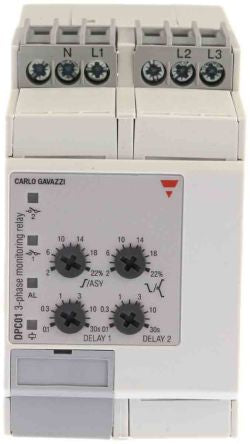

Carlo Gavazzi Phase, Voltage Monitoring Relay With SPDT Contacts, 3, 3+N Phase, 600 → 690 V ac [DPC01DM69]; 857-7700

Name: Carlo Gavazzi Phase, Voltage Monitoring Relay With SPDT Contacts, 3, 3+N Phase, 600 → 690 V ac [DPC01DM69]; 857-7700
Brand: Carlo Gavazzi
SKU: 8577700
Availability: InStock

by Carlo Gavazzi

0₫

(Giá chưa VAT).

Mã kho: 8577700

Mã nhà sản xuất: DPC01DM69

Đơn vị tính: Each

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Monitoring Application	Phase, Voltage
Supply Voltage	600 → 690 V ac
Contact Configuration	SPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Electrical Phase	3, 3+N
Voltage Sensing Range	510 → 793 V ac
Phase Sensitivity	Asymmetry, Phase Loss, Phase Sequence, Tolerance
Time Delay	1 s, 6 s
Frequency Sensing Range	50 → 60 Hz
Minimum Operating Temperature	-20°C
Minimum Frequency Sensed	50Hz
Minimum Voltage Sensed	510 V ac
Maximum Voltage Sensed	793V ac
Height	83.5mm
Width	99.5mm
Length	45mm
Dimensions	45 x 99.5 x 83.5 mm
Operating Temperature Range	-20 → +50 (60 Hz) °C, -20 → +60 (50 Hz) °C
Maximum Frequency Sensed	60Hz
Maximum Operating Temperature	+50 (60 Hz) °C, +60 (50 Hz) °C
