![Broyce Control LXPRF-4W 230V (400V) 8505386](http://nguyenxuong.com/cdn/shop/products/R8505386-01_165x444.jpg?v=1594018992)

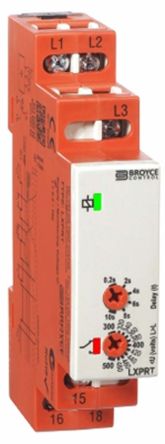

Broyce Control Phase, Voltage Monitoring Relay With SPDT Contacts, 230 V ac [LXPRF-4W 230V (400V)]; 850-5386
0₫
Mã kho: 8505386
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Monitoring Application | Phase, Voltage |
Supply Voltage | 230 V ac |
Contact Configuration | SPDT |
Voltage Sensitivity | Undervoltage |
Voltage Sensing Range | Maximum of 300 V |
Phase Sensitivity | Phase Failure, Phase Sequence |
Time Delay | 100 mS |
Series | L-Series |
Length | 66.5mm |
Width | 17.5mm |
Operating Temperature Range | -20 → +60 °C |
Terminal Type | Screw |
Mounting Type | DIN Rail |
Height | 89mm |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -20°C |
Current Range | Maximum of 8 A |
Dimensions | 17.5 x 89 x 66.5 mm |
Standards Met | IEC 60664 |
