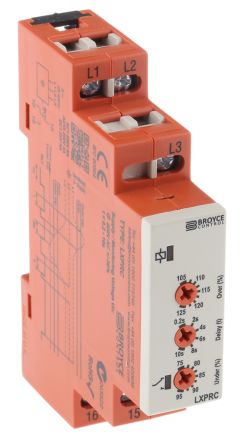

Broyce Control Phase, Voltage Monitoring Relay With SPDT Contacts, 400 V ac [LXPRC 400V]; 850-5373
0₫
Mã kho: 8505373
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 400 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Voltage Sensing Range | 300 → 380 (Under) V, 420 → 500 (Over) V |
| Phase Sensitivity | Phase Failure |
| Time Delay | 0.2 → 10 s |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Height | 89mm |
| Special Features | Time Delay |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Current Range | Maximum of 8 A |
| Operating Temperature Range | -20 → +60 °C |
| Width | 17.5mm |
| Length | 66.5mm |
| Series | L-Series |
| Dimensions | 17.5 x 89 x 66.5 mm |
| Standards Met | IEC 60664 |
