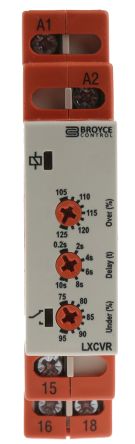

Broyce Control Phase, Voltage Monitoring Relay With SPDT Contacts, 230 V ac [LXCVR 230V]; 850-5395
0₫
Mã kho: 8505395
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 230 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Voltage Sensing Range | 173 → 218 (Under) V, 242 → 288 (Over) V |
| Phase Sensitivity | Single Phase |
| Time Delay | 0.2 → 10 s |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Special Features | Time Delay |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Operating Temperature | +60°C |
| Height | 89mm |
| Current Range | Maximum of 8 A |
| Width | 17.5mm |
| Dimensions | 17.5 x 89 x 66.5 mm |
| Standards Met | IEC 60664 |
| Series | L-Series |
| Length | 66.5mm |
| Minimum Operating Temperature | -20°C |
