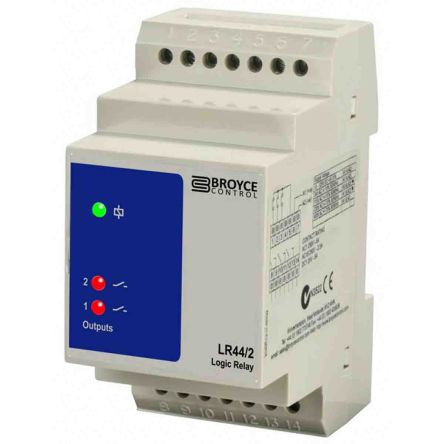

Logic Relay - 2 Inputs/2 Outputs [LR44/2 100-230V AC/DC]; 188-3545
0₫
Mã kho: 1883545
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 100 → 230 V ac/dc |
| Contact Configuration | 2 x SPNO |
| Time Delay | 1 s |
| Frequency Sensing Range | 48 → 63 Hz |
| Height | 85mm |
| Operating Temperature Range | -20 → +60 °C |
| Number of Poles | 1 |
| Width | 63.5mm |
| Length | 44mm |
| Current Range | Maximum of 5 A |
| Minimum Operating Temperature | -20°C |
| Minimum Frequency Sensed | 48Hz |
| Maximum Operating Temperature | +60°C |
| Dimensions | 44 x 63.5 x 85 mm |
| Maximum Frequency Sensed | 63Hz |
| Mounting Type | DIN Rail Mount |
| Terminal Type | Screw |
