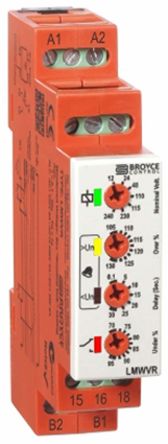

Broyce Control Voltage Monitoring Relay With SPDT Contacts, 24 → 230 V ac/dc [LMWVR 12-240V AC/DC]; 850-5418
0₫
Mã kho: 8505418
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 → 230 V ac/dc |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Voltage Sensing Range | 12 → 240 V |
| Time Delay | 0.1 → 30 s |
| Series | L-Series |
| Length | 66.5mm |
| Width | 17.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Standards Met | IEC 60664 |
| Height | 89mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Current Range | Maximum of 8 A |
| Mounting Type | DIN Rail |
| Dimensions | 17.5 x 89 x 66.5 mm |
