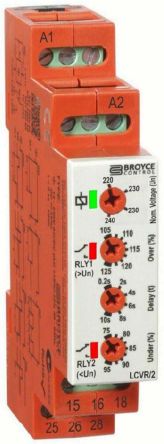

Broyce Control Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 230 V [LCVR/2 230V]; 135-6187
0₫
Mã kho: 1356187
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 230 V |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Voltage Sensing Range | 140 → 315 V |
| Time Delay | 0.2 → 10 s |
| Terminal Type | Wire Lead |
| Operating Temperature Range | -20 → +60 °C |
| Minimum Voltage Sensed | 140 V |
| Width | 17.5mm |
| Length | 89mm |
| Minimum Operating Temperature | -20°C |
| Mounting Type | DIN Rail |
| Dimensions | 89 x 17.5 x 66.5 mm |
| Standards Met | CE, EN 61000-6-2, EN 61000-6-4, IEC, RoHS Complaint |
| Maximum Voltage Sensed | 315V |
| Height | 66.5mm |
| Maximum Operating Temperature | +60°C |
| Special Features | Adjustment For Time Delay, Adjustments For Under And Over Voltage Trip Levels, Green Led Indication For Supply Status, Microprocessor Based, Monitors Own Supply And Detects If The Set Under Or Over Voltage Trip Levels Are Exceeded |
